Explore our comprehensive range of high-performance EV chargers and smart management software.

Incharz EV Charging Station

AC Chargers

Explore our range of reliable, three-phase AC chargers designed for seamless compatibility and advanced user authentication.

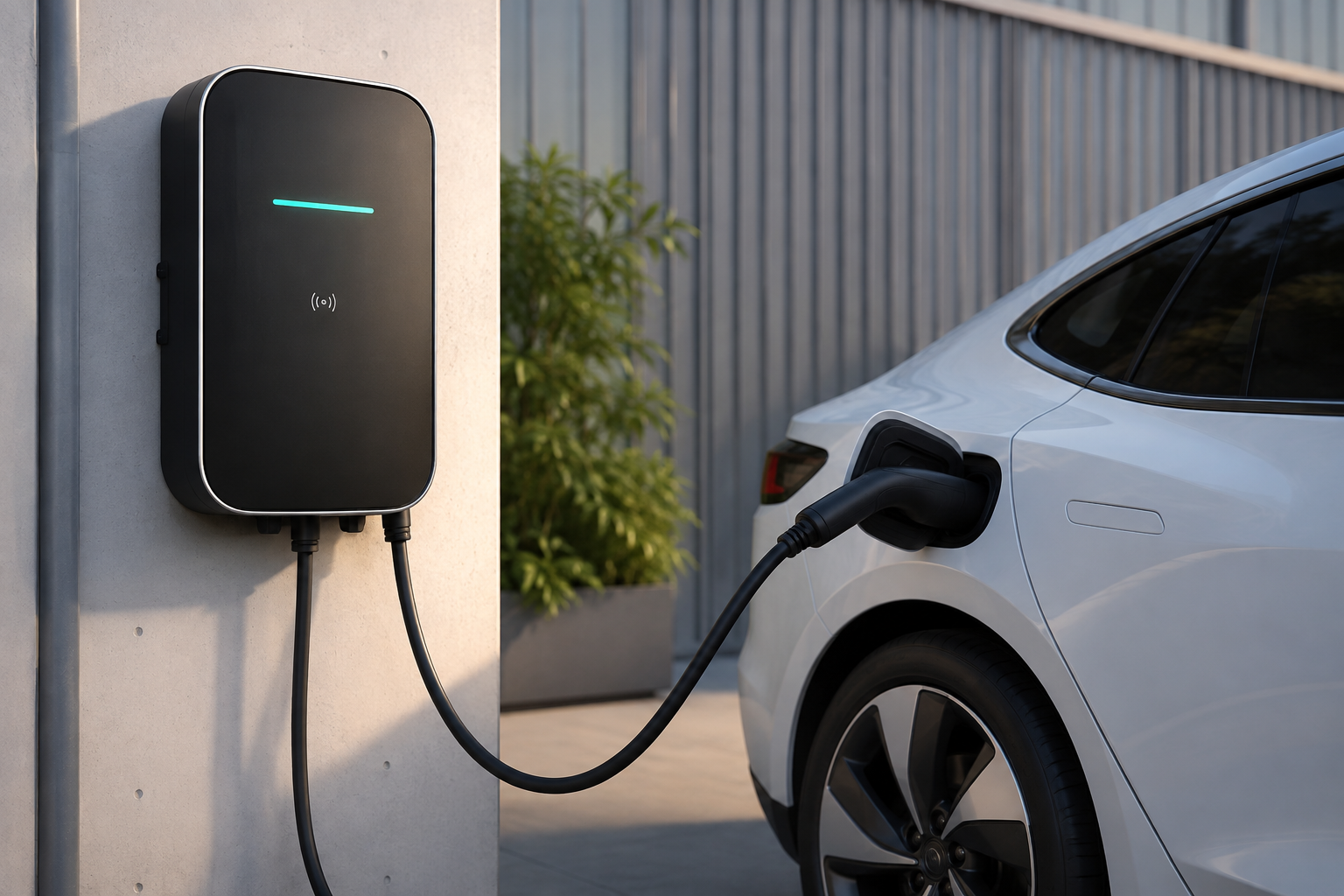

11 kW Charger

11 kW Charger

  • Compatible with 4 wheelers
  • User authentication via WiFi / GSM / OCPP1.6 / RFID / Ethernet
  • Input voltage: 415 VAC, 50Hz
  • Three Phase
14 kW Hybrid Charger

14 kW Hybrid Charger

  • Compatible with 4 wheelers
  • User authentication via WiFi / GSM / OCPP1.6 / RFID / Ethernet
  • Input voltage: 415 VAC, 50Hz
  • Three Phase
22 kW Charger

22 kW Charger

  • Compatible with 4 wheelers
  • User authentication via WiFi / GSM / OCPP1.6 / RFID / Ethernet
  • Input voltage: 415 VAC, 50Hz
  • Three Phase

Incharz EV Charging Station

AC Chargers - Technical Specs

Swipe left/right to view full table
Parameters Details 3.3 KW 7 KW 10KW 14 KW 22 KW
Without HMI WITH HMI Without HMI WITH HMI WITH HMI Model 1 Model 2 WITH HMI
Input Power Rated Power 3.3 KW Type 2: 7.2kw 10 KW (3 Nos. Industrial Socket of 3.3 KW) Hybrid 14 KW (2 Nos. Industrial Socket of 3.3 KW, 1 No. type 2 Gun Single Phase ) Type 2: 22kw
Input Voltage 230VAC �10%, 50Hz 415V AC �10%, 50Hz (Three phase)
Output Power Number of output 1 Nos. Industrial Socket 1 Nos. Type -2 Gun 3 Nos. Industrial Socket of 3.3 KW 1 Nos. Domestic Socket -3.3 KW, 1 Nos. Industrial Socket 3.3 KW, 1 Nos. type 2 Gun 1 Nos. Type 2 Gun
Output current range 0-16 A for 3.3KW 0-16 A for 3.3kw, 32A for 7.2 kw per phase, 0-16 Amp per phase 0-16 Amp per phase 32A / Phase
Output charging outlet Industrial IEC 60309 Type 2 IEC 62196 IEC 60309 IEC 60309 and Type 2 IEC 62196 Type 2 IEC 62196
Output voltage 230 V AC 230V AC/415 V AC 230V (+6% and -10%) single phase Three Phase 3L + N + PE, 415V AC +- 10%, 50Hz (Three phase)
Battery Backup For Billing (Optional) 15 Min
User interface and control function DISPLAY NIL 4.3 TFT LCD with Touch NIL 4.3 TFT LCD with Touch 4.3 TFT LCD with Touch 2.3 Inch LCD 4.3 TFT LCD with Touch
Status Indicator Provided
Push button Provided
User authentication QR Code + OCPP 1.6
Environment Ambient temperature -30 to 55 deg C
Storage temperature -30 to 70 deg C
Operatioinal Temp -30 to 60 deg C
Altitude < 2000 meters
Humidity upto 95% Non Condensing
Communication External ( GSM - Optional ) WiFi +4G +LAN +OCPP1.6v
Metering and Billing Wifi/ GSM with SIM, APP Server Based Online Payment, OCPP Based Authentication, Grid QR code scan/RFID card/APP server based online Payment
Charging Operation RFID /Scan Code/ App APP Based Authentication
Protection Input/Output protection Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection
Mechanical protection IP 54
Cooling Natural Cooling
Regulation As per IEC 61851-1:201 IEC 61851-1:2017, IEC 61851-21-2
Safety CE
Certificate ARAI/NABL
Optional Accessories Mounting Column / Piller
Smart Charging

AC Chargers Ecosystem

Key Features

Smart charging solution – takes care of grid load and varying charging demand
Supports IEC60309 & IEC 62196 standard connectors
User-friendly app for EV owners to monitor charging and billing information
Able to manage power loads, keeping it in sync with the charging load
Grid responsive metering and billing

Benefits

Compact Design
User Authorization
Charging Interface Support
Easy Installation

Applications

Commercial
Residential
Parking
Fleet
Rapid Charging

DC Chargers Ecosystem

Key Features

Smart charging solution – takes care of grid load and varying charging demand
Supports CCS-2 connector
User-friendly app for EV owners to monitor charging and billing information
Smart card, QR/App Server-based online payment
Able to manage power loads, keeping it in sync with the charging load
Grid responsive metering and billing

Benefits

Interoperability
Interactive Display
Fast Charging
Set-and-Go
Connectivity
Charge-all-Together

Applications

EV Bus Station
Parking Garage
Commercial Operators
Highway Fuel Stations
Parking
Fleet
User Mobile App

Locate stations, check availability, start/stop charging, and pay seamlessly via wallet or UPI.

Admin Dashboard

Real-time monitoring, pricing control, revenue analytics, and remote troubleshooting for CPOs.

OCPP Compliant

Fully interoperable with universal OCPP 1.6J protocols, ensuring future-proof integration.

Automated Billing

Hassle-free automated settlements and transparent invoicing for fleet operators and partners.

Intelligent Software

Smart Charging Management System

Hardware is only half the equation. Our proprietary CMS (Charging Management System) puts complete control at your fingertips.

Whether you are an EV driver looking for the nearest charger, or a franchise owner tracking monthly ROI, our software ecosystem delivers a frictionless experience.

Ready to build your EV network?

Get in touch with our technical team to find the exact hardware and software combination that suits your needs.
